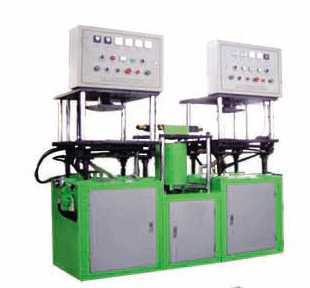

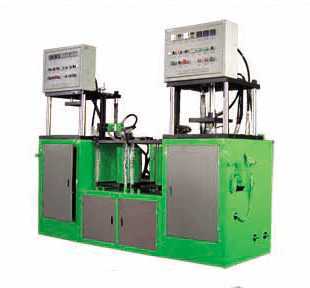

Double site hydraulic  wax injection machine - precision casting equipment

Major technique parameter:

Specification:

MYY6.3-2-5

MYY6.3-2-8

Power, V:

380VAC

380VAC

Installed Power, kw:

4.5kw

4.5kw

Mold Clamp Force, T:

5

8

System Pressure, MPa:

7.0

7.0

Wax Injection Pressure, MPa:

2-6.3

2-6.3

Wax Injection TEMP. :

30 - 80

30 - 80

Wax Cylinder Volume, L:

7

7

Platen Speed close, mm/S:

53

34

Injection The Wax Speed, L/S:

0-0.3

0-0.3

Injection The Wax Time, S:

0-99

0-99

Work Area Size (L* W* H), mm:

480x480x260mm

500x400x320mm

Contour Size (L* W* H), mm:

1850x760x1800mm

2150x900x1800mm

Weight, kg:

1200kg

1500kg
